Integrated display
A 13.3-inch integrated display is specified in the supplied product document.
All products
ALZ-IPD200 Digital Endoscopy Center Solutions
Medical Endoscope Image Processor
A medical endoscope image processor for use with Aullap electronic endoscopes, featuring a 13.3-inch integrated display and image, recording and connectivity functions.
- Model
- ALZ-IPD200
- Product family
- Digital Endoscopy Center Solutions
01 · Overview
Designed for a clearer reprocessing workflow.

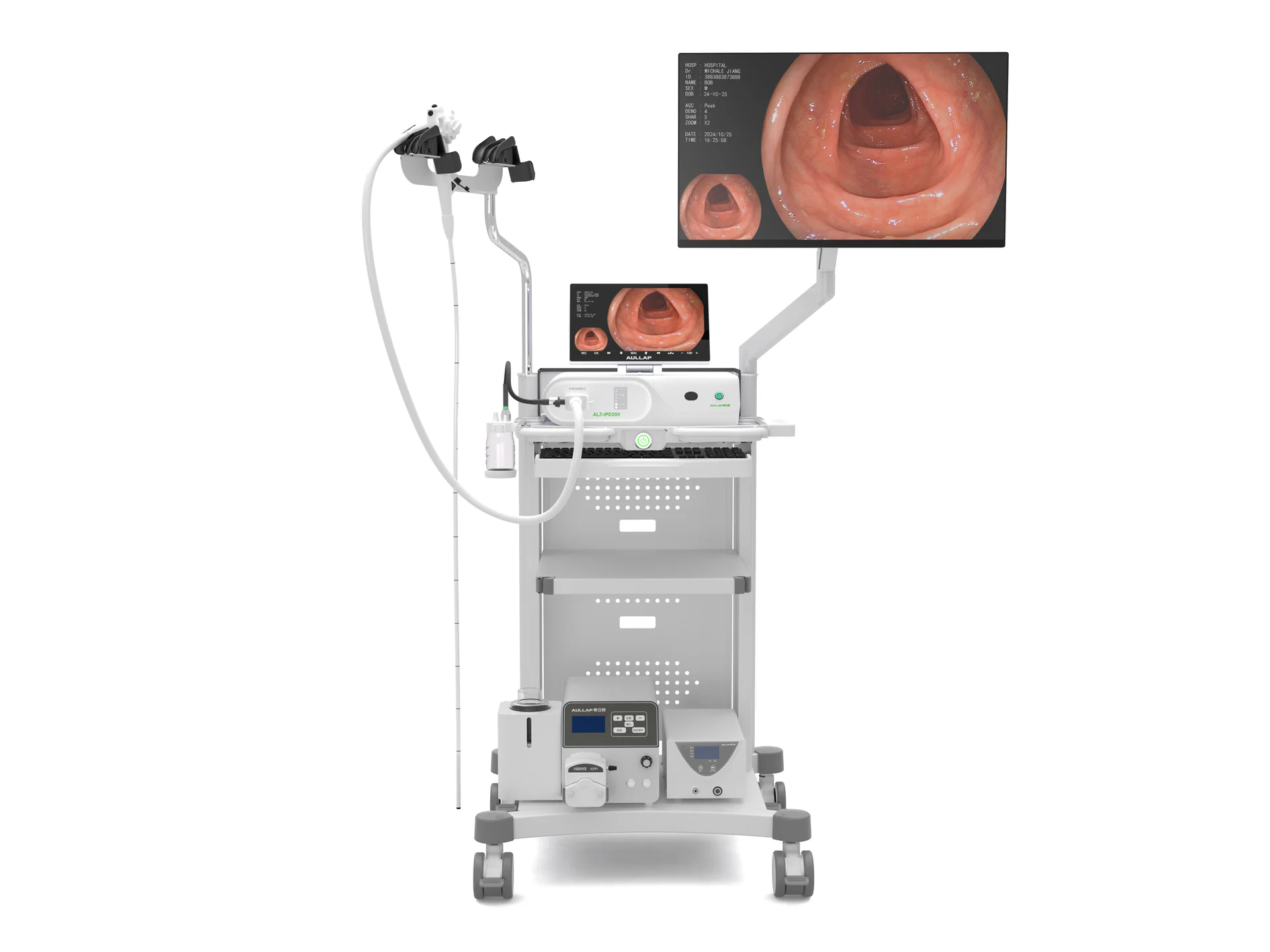

The ALZ-IPD200 Medical Endoscope Image Processor is intended for use in healthcare facilities with Aullap electronic endoscopes. It processes images captured by the electronic endoscope and outputs them to a display.
The processor integrates a 13.3-inch display and supports white balance, light-source modes, brightness adjustment, red, blue and green saturation adjustment, three-level magnification, noise reduction, sharpness adjustment, Chinese and English language switching, image freeze, video recording and still-image capture.
02 · Key features
Built around the workflow.
Key information from the current approved product profile.
Key information
Image adjustment
Supports white balance, light-source modes, brightness, red, blue and green saturation, three-level magnification, noise reduction and sharpness adjustment.
Recording workflow
Supports Chinese and English language switching, image freeze, video recording and still-image capture.
System connections
Supports external suction and carbon-dioxide units, with PS/2, HDMI, DVI, S-Video and CVBS connections specified.
03 · Product information
Key specifications
- Model
- ALZ-IPD200
- Integrated display
- 13.3 inches
- Air insufflation
- Available
- Auxiliary water supply
- Available
- Suction
- External suction unit
- Carbon dioxide supply
- External carbon dioxide unit
- Input and output ports
- PS/2; HDMI; DVI; S-Video; CVBS
