Vacuumization and clean circulating air
The drying technology combines vacuumization with clean circulating air to quickly dry the inner cavities and surfaces of endoscopes.
All products

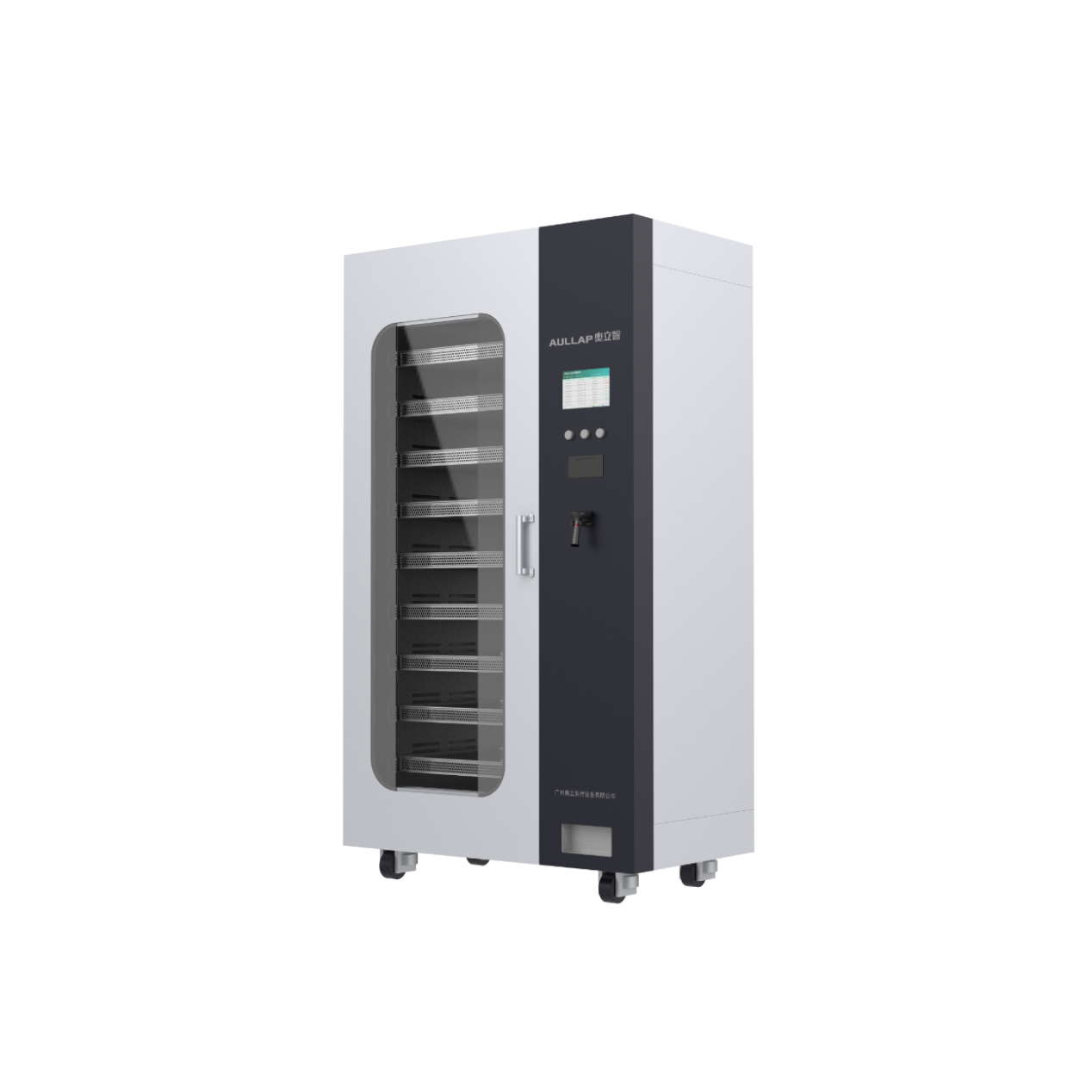

ALCS902 Endoscope Storage & Drying

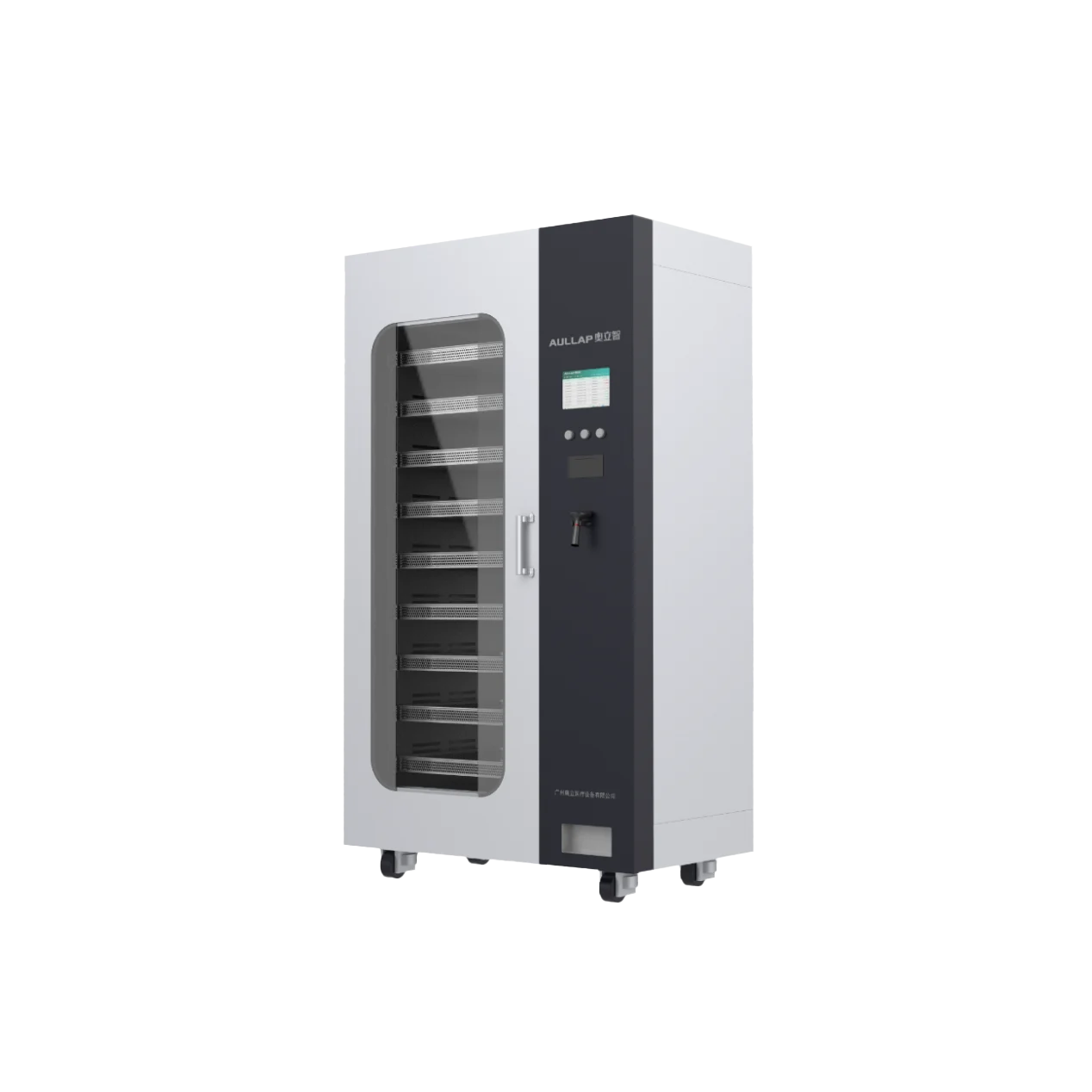

Endoscope Intelligent Clean Storage Cabinet
ALCS902 combines vacuumization and clean circulating air for the drying and clean storage of flexible endoscopes.
- Model
- ALCS902
- Product family
- Endoscope Storage & Drying
- Workflow stage
- Drying & Storage
01 · Overview
Designed for a clearer reprocessing workflow.
ALCS902 is an endoscope intelligent clean storage cabinet available in single-door and double-door configurations. It is designed for the drying and clean storage of the inner cavities and surfaces of flexible endoscopes after disinfection and sterilization, helping avoid secondary contamination.
Vacuumization and clean circulating air support drying of the internal channels and external surfaces. A color touchscreen provides real-time visibility of endoscope storage status, including quantity, temperature, humidity, storage time and traceability information.
Following qualified disinfection and sterilization, the official manual states that endoscopes can be used directly within 240 hours of storage in the cabinet.
02 · Key features
Built around the workflow.
Key information from the current approved product profile.
Key information
Endoscope-level status monitoring
Real-time color indicators show drying (blue), ready for use (green), approaching storage expiry (yellow) and expired storage (red), with alarm support.
Controlled temperature and humidity
The cabinet uses natural temperature, with a controllable temperature range of 20–40 °C and humidity range of 30–65% RH.
Integrated control systems
The cabinet combines electromechanical, vacuum, high-efficiency filtration, and temperature and humidity control systems.
High-efficiency air filtration
A built-in high-efficiency air filter treats incoming air to help prevent dust and bacterial microorganisms from entering the cabinet and causing secondary pollution.
240-hour storage use
After qualified disinfection and sterilization, endoscopes can be used directly within 240 hours of storage in the cabinet without further treatment.
Color touchscreen control
The intelligent control system and color touchscreen provide real-time monitoring of storage quantity, temperature, humidity, storage time and other endoscope status information.
Timed drying and positive pressure
The manual states 10-minute internal-pipe drying, humidity reduced to 50% in 20 minutes, and complete endoscope drying in 60 minutes. A positive-pressure state forms after drying.
Traceable storage records
A scanning gun and endoscope storage data-recording device support traceability of entry time, storage duration and removal time, with printable records.
03 · Product information
Key specifications
- Model
- ALCS902
- Available configurations
- Single door; double doors
- Endoscope type
- Flexible endoscopes
- Temperature control range
- 20–40 °C
- Humidity control range
- 30–65% RH
- Status indication
- Drying, ready, approaching storage expiry and expired
- Drying sequence
- 10 min internal-pipe drying; 20 min to 50% RH; 60 min complete drying
- Storage window
- Up to 240 hours after qualified disinfection and sterilization
- Core systems
- Electromechanical, vacuum, high-efficiency filtration, temperature and humidity control
